Analog BRK-820SKT REV B
Jump to navigation
Jump to search

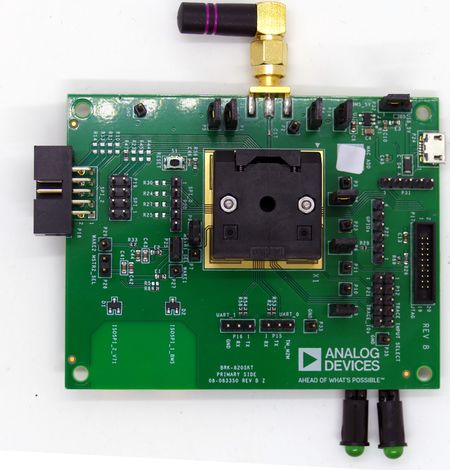

This article describes specifics for the Analog Devices BRK-820SKT REV B evaluation board.
Preparing for J-Link
- Connect the J-Link to 20 pin JTAG connector
- Power the board via USB (P24)

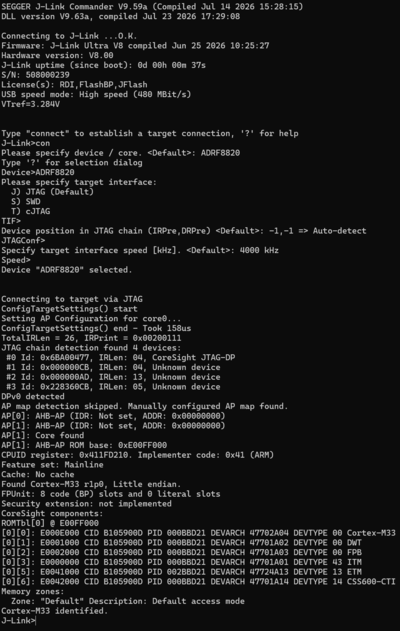

- Verify the Connection with e.g. J-Link Commander. The output should look as follows:
