Infineon CCGx CFP CYPD8229

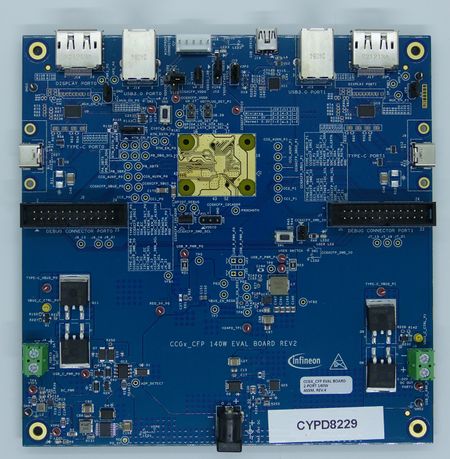

This article describes specifics for the Infineon CCGx_CFP evaluation board with CYPD8229 target.

Preparing for J-Link

• Connect the J-Link to miniprog connector (J18)
• Power the board Vtarg pin on miniprog connector
• Make sure to share Vtarg pin on miniprog connector for power supply and voltage reference

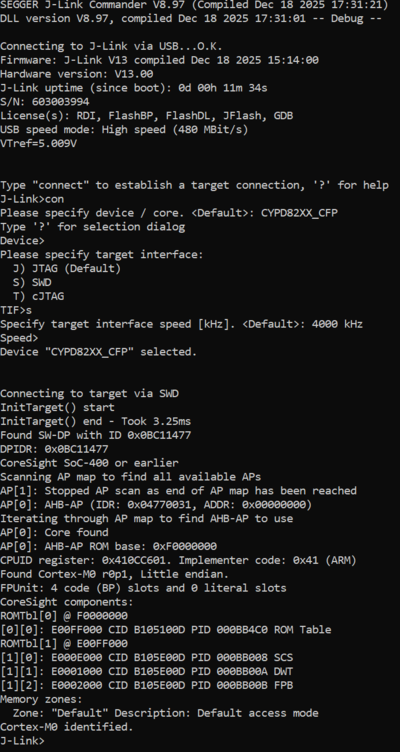

• Verify the Connection with e.g. J-Link Commander. The output should look as follows:

Example Project

The following example project was created with the SEGGER Embedded Studio project wizard and runs out-of-the-box on the Infineon CCGx_CFP.
It is a simple Hello World sample linked into the internal flash.

SETUP

• Embedded Studio: V8.24
• Hardware: Infineon CCGx_CFP
• Link: File:Infineon CYPD8229 TestProject ES V824.zip
