This article describes specifics for the NXP S32G-VNP-RDB2 evaluation board.

NXP S32G-VNP-RDB2.jpg

Preparing for J-Link

  • Connect the J-Link to JTAG (J48)
  • Power the board via J176 (12V)

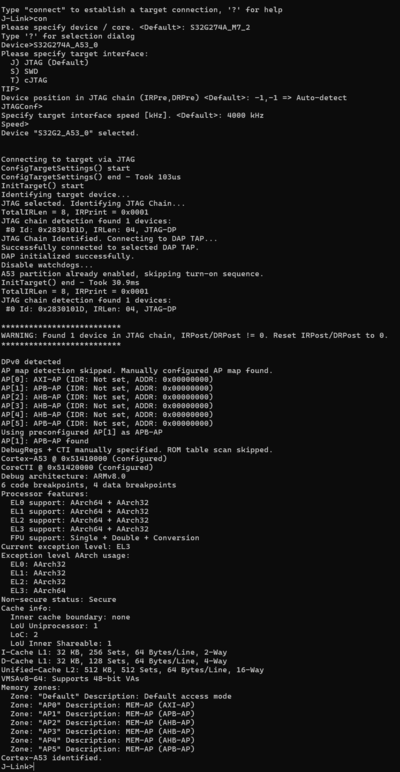

  • Verify the Connection with e.g. J-Link Commander. The output should look as follows:

NXP S32G-VNP-RDB2 CONNECT.PNG
