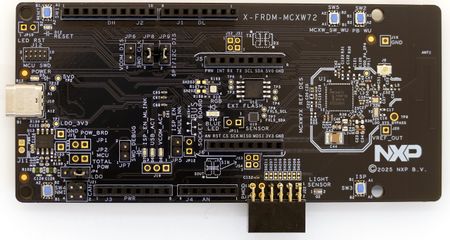

This article describes specifics for the X-FRDM-MCXW72 evaluation board.
Preparing for J-Link
- Connect the J-Link to J12.
- Power the board via J10.

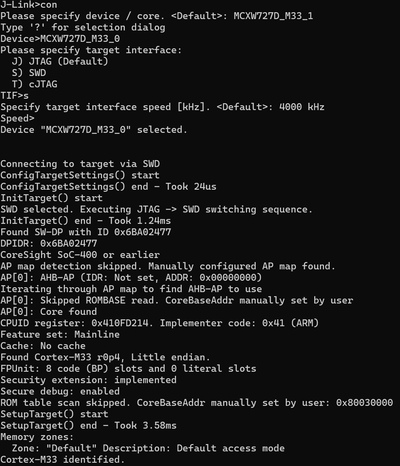

- Verify the Connection with e.g. J-Link Commander. The output should look as follows:
Example Project
The following example project was created with the SEGGER Embedded Studio project wizard and runs out-of-the-box on the X-FRDM-MCX W72.
It is a simple Hello World sample linked into the internal flash.
SETUP
- Embedded Studio: V7.20
- Hardware: NXP X-FRDM-MCXW72
- Link: File:NXP MCXW72 TestProject ES 7V20.zip
