This page contains the technical information of the SEGGER RH850 Adapter. For general information and an overview of the available Flasher adapters, refer to Adapter Overview.
Overview
The RH850 Adapter enables connections between the .1" 20-pin standard connector of the Flasher and the 14-pin JTAG/UART/SPI connector found on the target hardware supplied with Renesas RH850 series MCUs.
Pinout

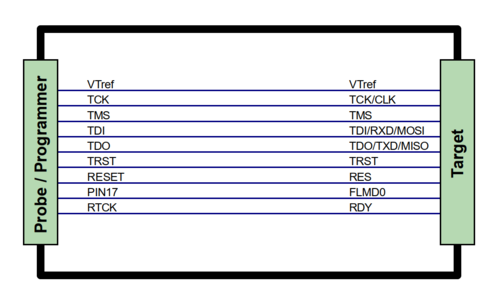

Schematics
