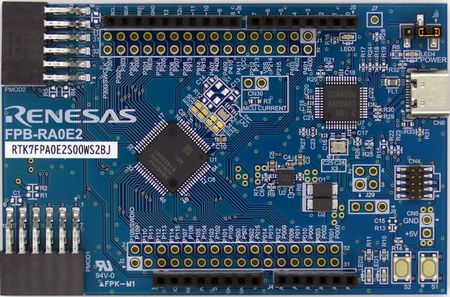

This article describes specifics for the Renesas FPB-RA0E2 evaluation board.
Preparing for J-Link
- Connect the board to the host PC via USB-C connector(CN6). J-Link OB is integrated.

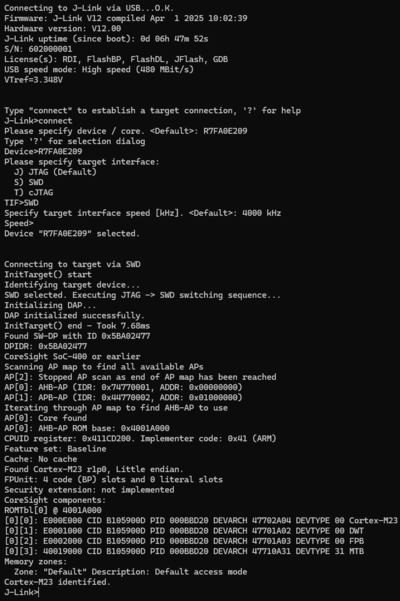

- Verify the Connection with e.g. J-Link Commander. The output should look as follows:
Example Project
The following example project was created with the SEGGER Embedded Studio project wizard and runs out-of-the-box on the Renesas FPB-RA0E2.
It is a simple Hello World sample linked to run from internal flash.
SETUP
- Embedded Studio: V8.30b
- Hardware: Renesas FPB-RA0E2
- Link: File:Renesas R7FA0E209 TestProject ES V830b.zip
Please Note: Internal flash on RA0 devices contains an option-byte section. This section is excluded from the example application's link configuration to avoid unexpected debug behavior. See SEGGER_Flash.icf for details.
