Renesas RA8M1
The Renesas RA8M1 are Cortex-M85 based microcontrollers.
Flash Banks
Internal Flash
J-Link supports multiple loaders for the internal program flash bank. The default loader is marked in bold. For details on how to select a specific flash loader, please see here.
| Flash Bank | Base address | Size | J-Link Support | Loaders |
|---|---|---|---|---|
| Code flash option-setting memory (secure) | 0x0300A100 | 384 B |
| |
| Code flash option-setting memory (non-secure) | 0x1300A180 | 128 B |
| |
| Data flash option-setting memory | 0x27030080 | 720 B |
| |
| Code flash (secure) | 0x02000000 | Up to 2048 KB |
| |
| Code flash (non-secure) | 0x12000000 | Up to 2048 KB |
| |
| Data flash (secure) | 0x27000000 | Up to 12 KB |
| |
| Data flash (non-secure) | 0x37000000 | Up to 12 KB |
|
Single Bank Mode
All loaders for the internal program flash bank, except the DualBank loader, require the device to be configured for single-bank (linear) mode via DUALSEL.BANKMD[2:0]. The configuration takes effect after a reset.
Dual Bank Mode
J-Link supports dual bank mode for the internal program flash bank. Notes on how to use the DualBank loader:
- The device must be configured for dual-bank mode via DUALSEL.BANKMD[2:0]. The configuration takes effect after a reset.
- The DualBank loader supports startup bank swapping.
- The DualBank loader uses logical flash addresses for programming and erase operations. The hardware maps these addresses to the corresponding physical bank.
- The user is responsible for ensuring that the desired physical bank is mapped to the expected logical address before programming.
QSPI Flash
QSPI flash programming requires special handling compared to internal flash. For more information about this, please see the QSPI Flash Programming Support article.
Flash programming in OSPI mode is supported for Infineon S28HL512T and S28HS512T only. Other flashes are handled in single/quad mode.
| Bank name | Base address | Maximum size | Supported pin configuration |
|---|---|---|---|
| External OSPI flash CS0 | 0x80000000 | 256 MB |
|
| External OSPI flash CS1 | 0x90000000 | 256 MB |
|
For pin configurations, different from the ones mentioned above, please get in touch with SEGGER directly via our support system: https://www.segger.com/ticket/.
Data flash specific handling
Data flash in erased state has undefined values, therefore when using J-Flash application, "Skip blank data" and "Perform blank check" options must be disabled in project settings.
Watchdog Handling
- The device has two watchdogs: Watchdog Timer (WDT) and Independent Watchdog Timer (IWDT).
- Both watchdogs are fed during flash programming.
Device Specific Handling
Connect
The connection sequence to RA8 devices is DLM-aware. The general DLM handling is described here and the family-specific handling is documented here.
Reset
- The devices uses normal Cortex-M reset, no special handling necessary, like described here.
- In case a normal Cortex-M reset fails, a pin reset + CPUWAIT bit is employed as fallback.
Device Initialization
Device initialization is implemented in the Device Provisioner utility: Renesas_RA8_Initialization.
Limitations
Using OEM_PL1 state with J-Flash
Since OEM_PL1 state requires the use of non-secure RAM (0x320D0000-0x320DFFFF), the user has to ensure that the J-Flash project is set up to use this RAM area instead of the secure RAM. By default J-Flash projects are created with secure RAM area (0x220D0000-0x220DFFFF) selected.

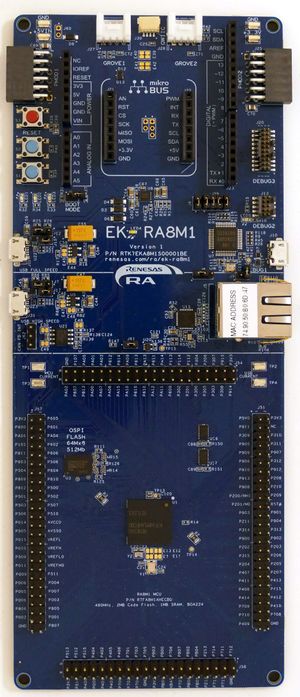

Evaluation Boards
Example Application
Tracing on Renesas R7FA8M1
This section describes how to get started with trace on the Renesas R7FA8M1 MCUs. This section assumes that there is already a basic knowledge about trace in general (what is trace, what different implementations of trace are there, etc.). If this is not the case, we recommend to read Trace chapter in the J-Link User Manual (UM08001).
Some of the examples are shipped with a compiled .JLinkScriptfile (extension .pex), should you need the original source, please get in touch with SEGGER directly via our support system: https://www.segger.com/ticket/.
To create your own .JLinkScriptfile you can use the following guide as reference: How_to_configure_JLinkScript_files_to_enable_tracingMinimum requirements
In order to use trace on the Renesas R7FA8M1 MCU devices, the following minimum requirements have to be met:
- J-Link software version V7.98c or later
- Ozone V3.34a or later (if streaming trace and / or the sample project from below shall be used)
- J-Trace PRO version V3.0 or later for streaming (off-chip) trace
- J-Link Plus V12 or later for buffer (on-chip) trace
To rebuild the project our IDE Embedded Studio can be used. The recommended version to rebuild the projects is V8.14a. But the examples are all prebuild and work out-of-the box with Ozone, so rebuilding is not necessary.
The project below has been tested with the minimum requirements mentioned above and a EK-RA8M1.
- Example project: Renesas_RA8M1_TraceExample.zip
Streaming trace
Open the *_TracePins.jdebug project contained in the example project in Ozone.
Trace buffer
Open the *_TraceBuffer.jdebug project contained in the example project in Ozone.
Tested Hardware

Specifics/Limitations
To enable pin tracing on this board some jumpers may need to be set. For more information about this see the board specific user manual.
Reference trace signal quality
The following pictures show oscilloscope measurements of trace signals output by the "Tested Hardware" using the example project. All measurements have been performed using a Agilent InfiniiVision DSO7034B 350 MHz 2GSa/s oscilloscope and 1156A 1.5 GHz Active Probes. If your trace signals look similar on your trace hardware, chances are good that tracing will work out-of-the-box using the example project. More information about correct trace timing can be found at the following website.
Trace clock signal quality

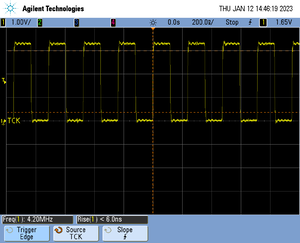

The trace clock signal quality shows multiple trace clock cycles on the tested hardware as reference.

Rise time

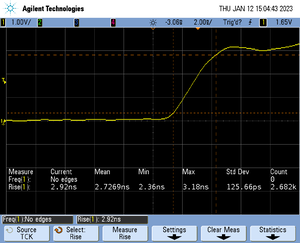

The rise time of a signal shows the time needed for a signal to rise from logical 0 to logical 1. For this the values at 10% and 90% of the expected voltage level get used as markers. The following picture shows such a measurement for the trace clock signal.

Setup time

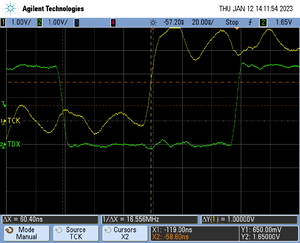

The setup time shows the relative setup time between a trace data signal and trace clock. The measurement markers are set at 50% of the expected voltage level respectively. The following picture shows such a measurement for the trace data signal 0 relative to the trace clock signal.
