SAM4L-EK
Jump to navigation
Jump to search

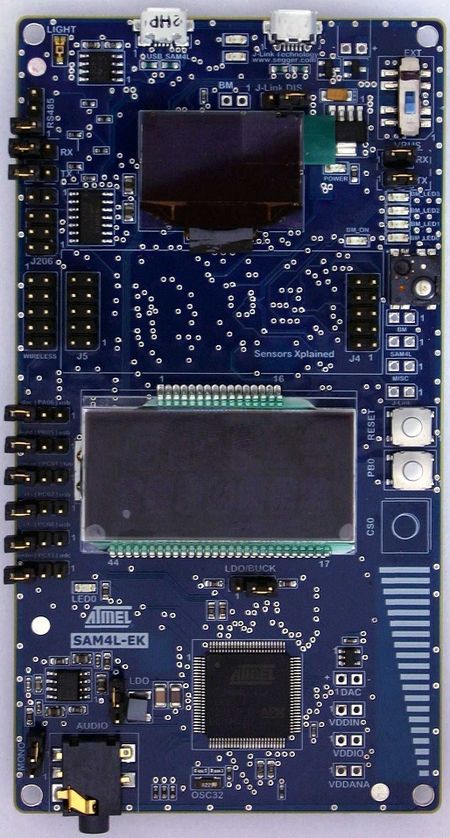

The Atmel SAM4L-EK is an ATSAM4L evaluation board.
Preparing for J-Link
- Enable the onboard JLink by removing J8
- Connect the onboard JLink to host computer (top right USB port)
- Turn the power switch to "VBUS"

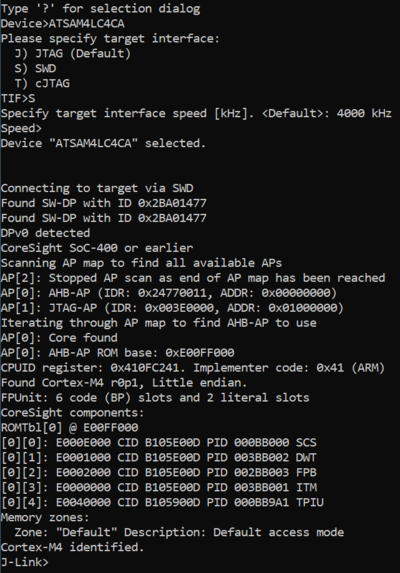

- Verify the Connection with e.g. J-Link Commander. The output should look as follows:
Example Projects
Hello World
The following example project was created with the SEGGER Embedded Studio project wizard and runs out-of-the-box on the ATSAM4LC4CA. It outputs "Hello World!" to the Debug Terminal in a loop.
Setup
- J-Link software: V8.75
- Embedded Studio: V8.16
- Hardware: Atmel ATSAM4LC4CA
- Link: File:ATSAM4L HelloWorld.zip
