SAM9X75-CURIOSITY

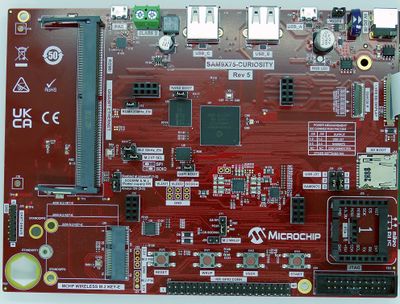

The Microchip SAM9X75-CURIOSITY is a SAM9X7 evaluation board.

Preparing for J-Link

• Connect your J-Link to the "JTAG" connector (J34)
• Power the board via the "5V DC-IN" power jack (J1)

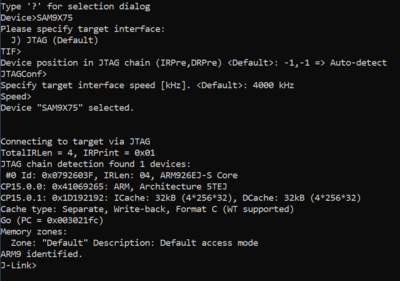

• Verify the Connection with J-Link Commander. The output should look as follows:

Example Projects

Hello World

The following example project was created with the SEGGER Embedded Studio project wizard and runs out-of-the-box on the SAM9X7. It outputs "Hello World!" to the Debug Terminal in a loop.

Setup

• J-Link software: V9.12
• Embedded Studio: V8.16
• Hardware: Microchip SAM9X7
• Link: File:SAM9X7 HelloWorld.zip
