ST STM32WB5MM DK

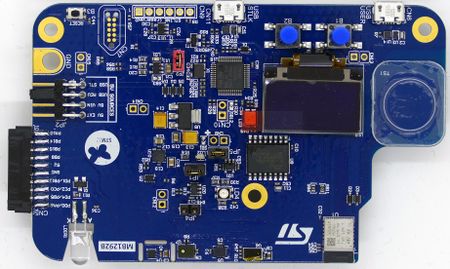

This article describes specifics for the ST STM32WB5MM-DK evaluation board.

Preparing for J-Link

• Connect the J-Link to TAG10 Connect (CN7) with the JP3 jumper ON
• Power the board via USB Micro-B connector (CN6) with JP2 selecting 5V_USB_MCU
• Alternatively you might use ST-LINK via Micro-B connector (CN11)
• Verify the connection with e.g. J-Link Commander. The output should look as follows:

Example Project

The following example project was created with the SEGGER Embedded Studio project wizard and runs out-of-the-box on the ST STM32WB5MM-DK.
It is a simple Hello World sample linked into the internal flash.

SETUP

• Embedded Studio: V8.24
• Hardware: ST STM32WB5MM-DK
• Link: File:ST STM32WB5MMG TestProject ES V824.zip
