ST StellarStudio

The ST StellarStudio software development tool is a GNU/Eclipse-based development environment for SR5x and SR6x device families and comes with integrated J-Link support.

Using an ST StellarStudio project with J-Link

For detailed instructions on how to install and use StellarStudio IDE, please contact ST.
This article relies on J-Link Software and Documentation Pack installed in C:\Program Files\SEGGER\JLink\.

SR5x Device Family

Import example project

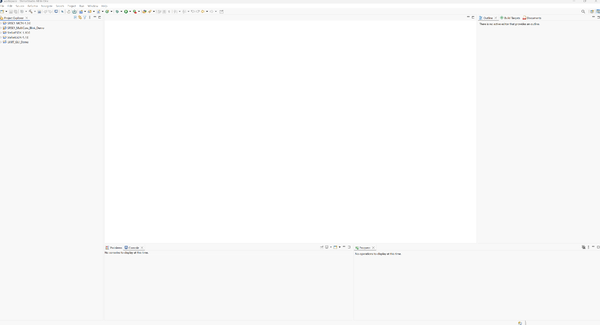

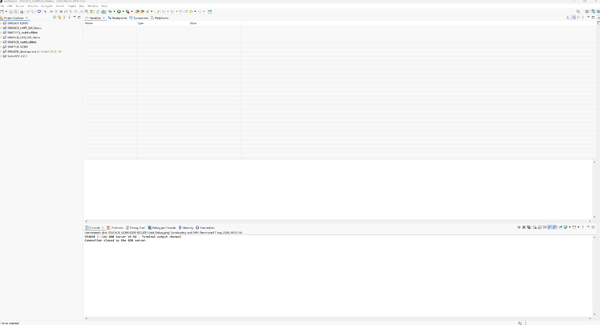

• Open ST StellarStudio.

• Click Import StellarStudio Demos.

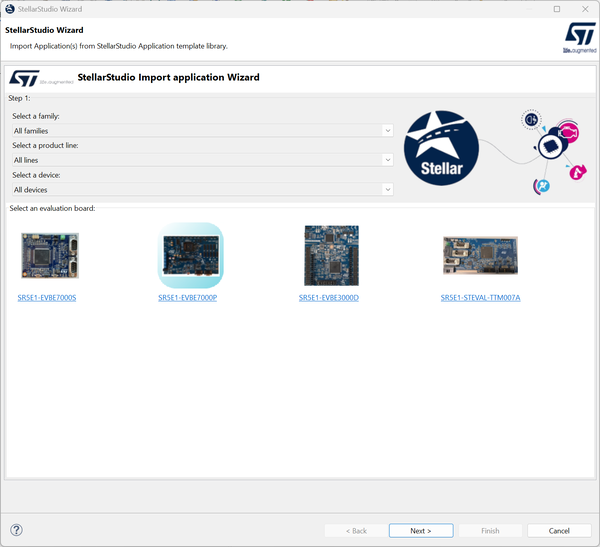

• You can select your eval board and click next.

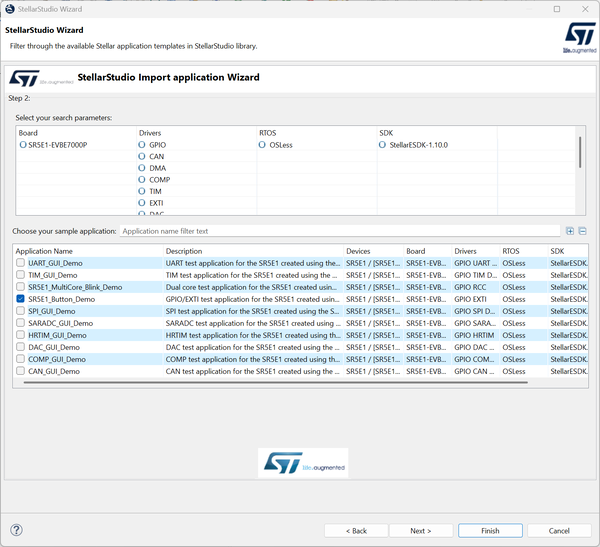

• Select your demo application and click next.

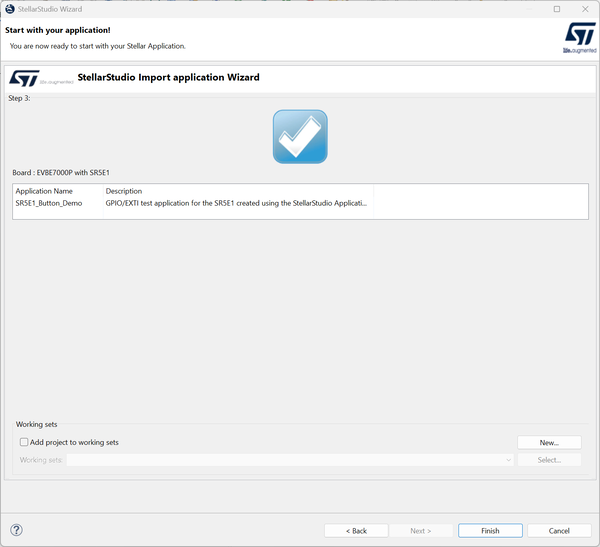

• Click Finish.


Debugging single core project

• Build your application.
• Open Debug Configurations and select the configuration for your demo application (here: GDB SEGGER J-Link Debugging->jlink_SR5E1_Button_Demo).

• Adjust the settings if needed and click on Debug.

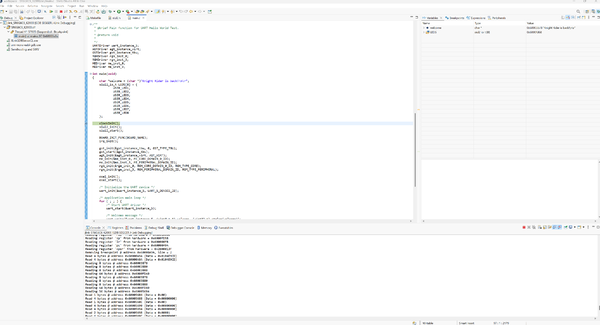

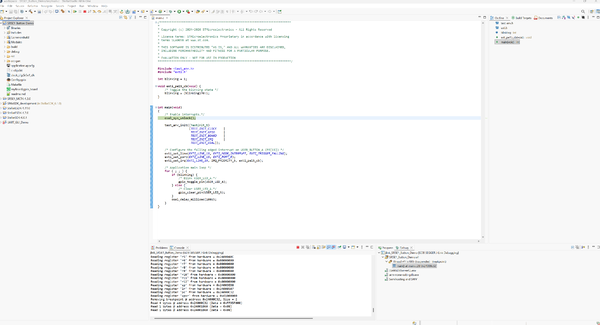

• Application is downloaded to the target and debugging starts.


Debugging multi core project

• Build your application.
• Open Debug Configurations and select the configuration for your demo application(here: GDB SEGGER J-Link Debugging->jlink_core2_SR5E1_MultiCore_Blink_Demo).

• Adjust the settings if needed and click on Debug.

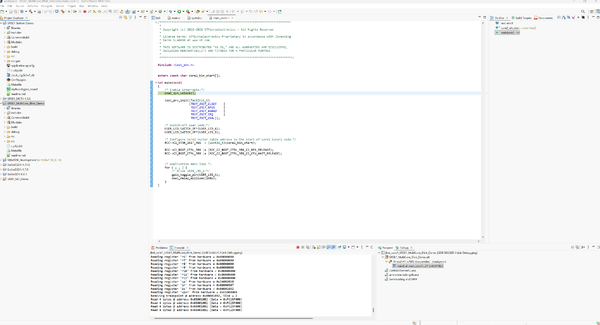

• The application is downloaded to the target and debugging starts.


SR6x Device Family

Import example project

• Open ST StellarStudio.

• Click Import StellarStudio Demos.

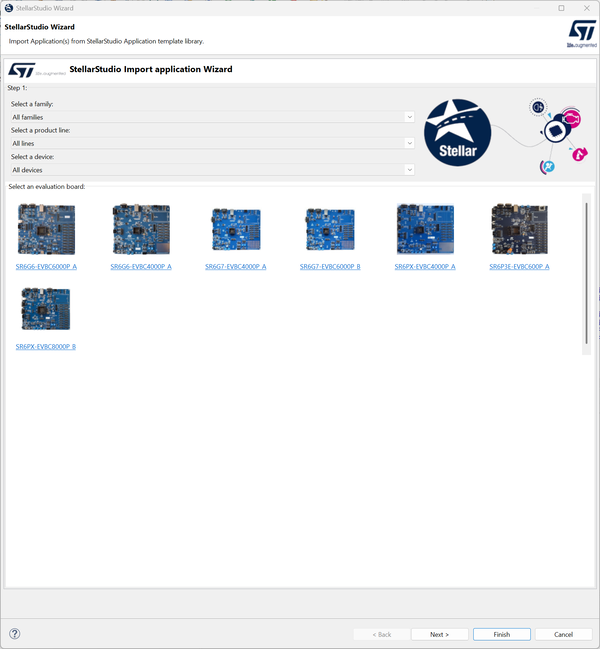

• You can select your eval board and click next.

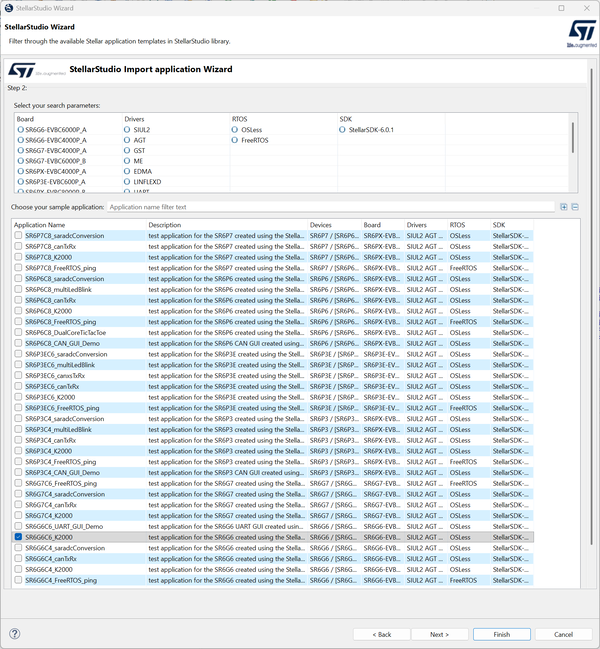

• Select your demo application and click next.

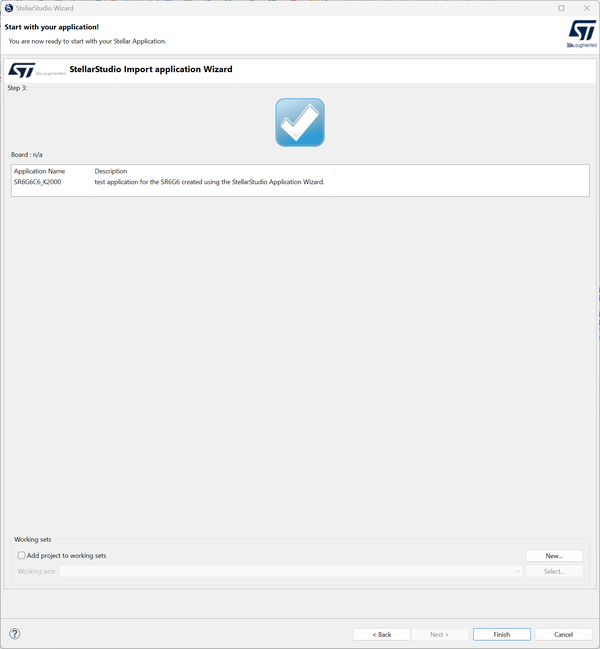

• Click Finish.


Debugging single core project

• Build your application.

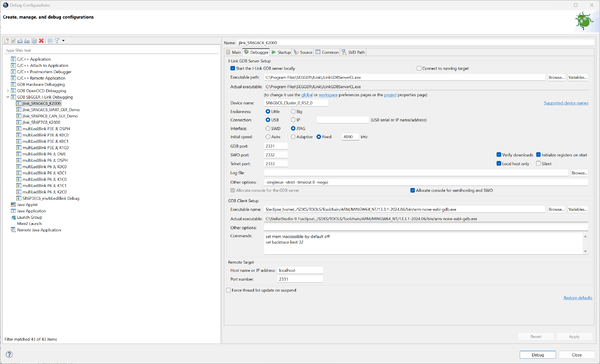

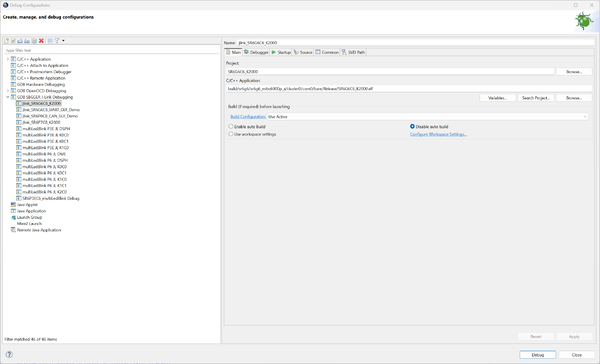

• Open Debug Configurations and select the configuration for your demo application(here: GDB SEGGER J-Link Debugging->jlink_SR6G6C6_K2000).

• Adjust the settings if needed and click on Debug.

• Application is downloaded to the target and debugging starts.


Debugging multi core project

Currently J-Link GDB Server has to be started manually.

• Build your application.

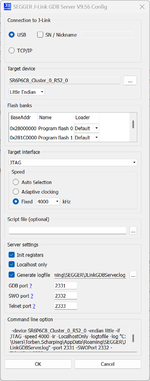

• Start the J-Link GDB Server with the correct settings.

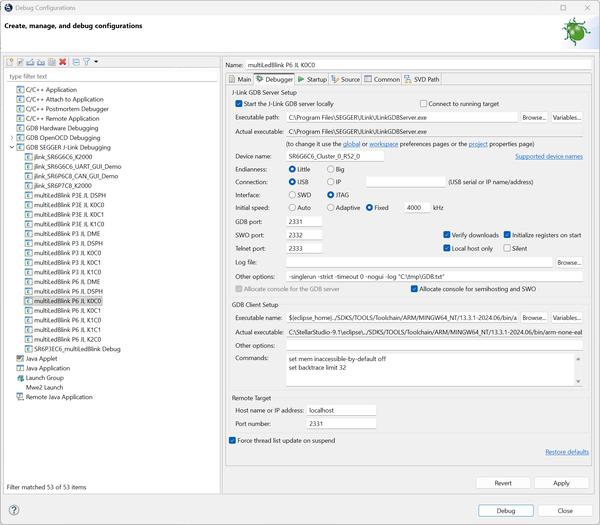

• Open Debug Configurations and select the configuration for your demo application(here: GDB SEGGER J-Link Debugging->multiLedBlink P6 JL K0C0).

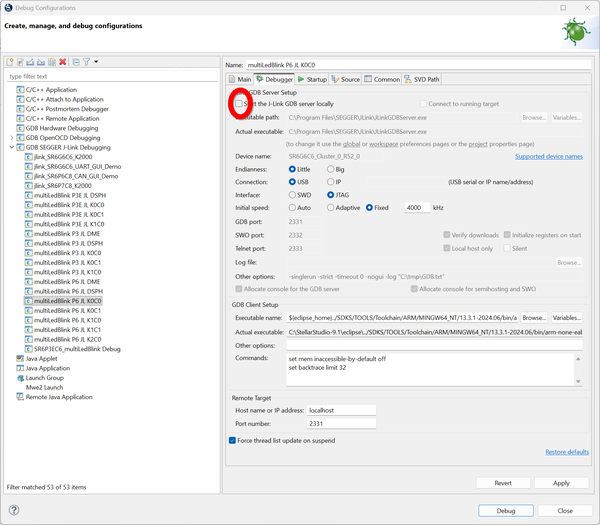

• Disable Start the J-Link GDB Server locally and adjust any additional settings if needed.

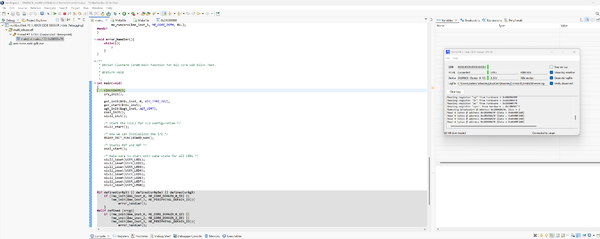

• The application is downloaded to the target and debugging starts.


Supported Versions

Version	J-Link support SR5x	J-Link support SR6x
9.1.0

StellarStudio with support for SR6x devices is available on request from ST.
StellarStudio with support for SR5x devices is available from ST here.
