This article describes specifics for the Toshiba SmartMCD TB9M001FTG evaluation board.
Preparing for J-Link
- Connect the J-Link to CN205.
- Power the board via BNC204 & BNC201 (12V).

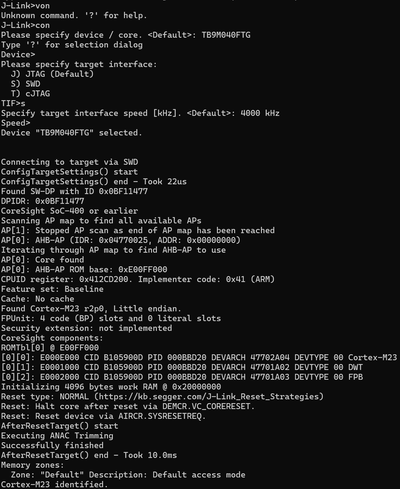

- Verify the Connection with e.g. J-Link Commander. The output should look as follows:
Example Project
The following example project was created with the SEGGER Embedded Studio project wizard and runs out-of-the-box on the Toshiba TB9M040FTG.
It is a simple Hello World sample linked into the internal flash.
SETUP
- Embedded Studio: V7.20
- Hardware: Toshiba TB9M040FTG EVBoard
- Link: File:Toshiba TB9M040FTG TestProject ES 7V20.zip
