| IP_Webserver_uCOS-III_Sample.c | |
|---|---|
 emWeb Server Sample. | |
| Requires modifications | No |
| Download | IP_Webserver_uCOS-III_Sample.c |

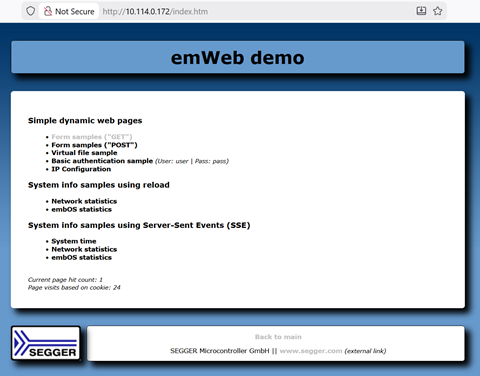

This Sample demonstrates how to start the emWeb server with uCOS-III.
Code
/*********************************************************************
* (c) SEGGER Microcontroller GmbH *
* The Embedded Experts *
* www.segger.com *
**********************************************************************
-------------------------- END-OF-HEADER -----------------------------
Purpose : Sample program for embOS & TCP/IP
*/
#include <stdio.h>
#include <stdlib.h>
#include <os.h>
#include "BSP.h"
#include "IP.h"
#include "IP_Webserver.h"
#include "WEBS_Conf.h" // Stack size depends on configuration
/*********************************************************************
*
* Local defines, configurable
*
**********************************************************************
*/
#define USE_RX_TASK 0 // 0: Packets are read in ISR, 1: Packets are read in a task of its own.
//
// Web server and IP stack
//
#define MAX_CONNECTIONS 2
#define BACK_LOG 20
#define IDLE_TIMEOUT 1000 // Timeout [ms] after which the connection will be closed if no new data is received.
#define SERVER_PORT 80
#define CHILD_ALLOC_SIZE 2560 // NumBytes required from memory pool for one connection. Should be fine tuned according
// to your configuration using IP_WEBS_CountRequiredMem() .
//
// Task priorities.
//
enum {
TASK_PRIO_WEBS_CHILD = 150
,TASK_PRIO_WEBS_PARENT
,TASK_PRIO_IP_TASK // Priority should be higher than all IP application tasks.
#if USE_RX_TASK
,TASK_PRIO_IP_RX_TASK // Must be the highest priority of all IP related tasks.
#endif
};
//
// Task stack sizes that might not fit for some interfaces (multiples of sizeof(int)).
//
#ifndef APP_TASK_STACK_OVERHEAD
#define APP_TASK_STACK_OVERHEAD 0
#endif
#ifndef STACK_SIZE_SERVER
#define STACK_SIZE_SERVER (2560 + APP_TASK_STACK_OVERHEAD)
#endif
//
// UDP discover
//
#define ETH_UDP_DISCOVER_PORT 50020
#define PACKET_SIZE 0x80
typedef struct{
U8 InUse;
long hSock;
CPU_STK Stack[STACK_SIZE_SERVER];
} WEBS_STACK_STRUCT;
/*********************************************************************
*
* Static data
*
**********************************************************************
*/
static U32 _aPool[(CHILD_ALLOC_SIZE * MAX_CONNECTIONS) / sizeof(int)]; // Memory pool for the Web server child tasks.
static IP_HOOK_ON_STATE_CHANGE _StateChangeHook;
static int _IFaceId;
static int _ConnectCnt;
//
// Task stacks and Task-Control-Blocks.
//
static CPU_STK _StackIP[TASK_STACK_SIZE_IP_TASK]; // Stack of the IP_Task.
static OS_TCB _TCBIP; // Task-Control-Block of the IP_Task.
#if USE_RX_TASK
static OS_TCB _TCBIPRx; // Stack of the IP_RxTask.
static CPU_STK _StackIPRx[TASK_STACK_SIZE_IP_RX_TASK]; // Task-Control-Block of the IP_RxTask.
#endif
//
// Webserver TCBs and stacks
//
static OS_TCB _aWebTasks[MAX_CONNECTIONS];
static WEBS_STACK_STRUCT _aWebStacks[MAX_CONNECTIONS];
//
// File system info
//
static const IP_FS_API *_pFS_API;
/*********************************************************************
*
* Prototypes
*
**********************************************************************
*/
#ifdef __cplusplus
extern "C" { /* Make sure we have C-declarations in C++ programs */
#endif
void MainTask(void);
#ifdef __cplusplus
}
#endif
/*********************************************************************
*
* Static code
*
**********************************************************************
*/
/*********************************************************************
*
* _OnStateChange()
*
* Function description
* Callback that will be notified once the state of an interface
* changes.
*
* Parameters
* IFaceId : Zero-based interface index.
* AdminState: Is this interface enabled ?
* HWState : Is this interface physically ready ?
*/
static void _OnStateChange(unsigned IFaceId, U8 AdminState, U8 HWState) {
//
// Check if this is a disconnect from the peer or a link down.
// In this case call IP_Disconnect() to get into a known state.
//
if (((AdminState == IP_ADMIN_STATE_DOWN) && (HWState == 1)) || // Typical for dial-up connection e.g. PPP when closed from peer. Link up but app. closed.
((AdminState == IP_ADMIN_STATE_UP) && (HWState == 0))) { // Typical for any Ethernet connection e.g. PPPoE. App. opened but link down.
IP_Disconnect(IFaceId); // Disconnect the interface to a clean state.
}
}
/*********************************************************************
*
* _closesocket()
*
* Function description
* Wrapper for closesocket()
*/
static int _closesocket(long pConnectionInfo) {
int r;
struct linger Linger;
Linger.l_onoff = 1; // Enable linger for this socket to verify that all data is send.
Linger.l_linger = 1; // Linger timeout in seconds
setsockopt((long)pConnectionInfo, SOL_SOCKET, SO_LINGER, &Linger, sizeof(Linger));
r = closesocket((long)pConnectionInfo);
return r;
}
/*********************************************************************
*
* _Recv()
*
* Function description
* Wrapper for recv()
*/
static int _Recv(unsigned char *buf, int len, void *pConnectionInfo) {
int r;
r = recv((long)pConnectionInfo, (char *)buf, len, 0);
return r;
}
/*********************************************************************
*
* _Send()
*
* Function description
* Wrapper for send()
*/
static int _Send(const unsigned char *buf, int len, void* pConnectionInfo) {
int r;
r = send((long)pConnectionInfo, (const char *)buf, len, 0);
return r;
}
/*********************************************************************
*
* WEBS_IP_API
*
* Description
* IP related function table
*/
static const WEBS_IP_API _Webs_IP_API = {
_Send,
_Recv
};
/*********************************************************************
*
* _Alloc()
*
* Function description
* Wrapper for Alloc(). (emNet: IP_MEM_Alloc())
*/
static void * _Alloc(U32 NumBytesReq) {
return IP_AllocEx(_aPool, NumBytesReq);
}
/*********************************************************************
*
* _Free()
*
* Function description
* Wrapper for Alloc(). (emNet: IP_MEM_Alloc())
*/
static void _Free(void *p) {
IP_Free(p);
}
/*********************************************************************
*
* WEBS_SYS_API
*
* Description
* System related function table
*/
static const WEBS_SYS_API _Webs_SYS_API = {
_Alloc,
_Free
};
/*********************************************************************
*
* _AddToConnectCnt
*/
static void _AddToConnectCnt(int Delta) {
IP_OS_INC_DI();
_ConnectCnt += Delta;
IP_OS_DEC_RI();
}
/*********************************************************************
*
* _WebServerChildTask
*/
static void _WebServerChildTask(void *pContext) {
WEBS_CONTEXT ChildContext;
OS_ERR Os_Err;
long hSock;
int Index;
int Opt;
int r;
Index = (int)pContext;
hSock = _aWebStacks[Index].hSock;
Opt = 1;
setsockopt(hSock, SOL_SOCKET, SO_KEEPALIVE, &Opt, sizeof(Opt));
IP_WEBS_Init(&ChildContext, &_Webs_IP_API, &_Webs_SYS_API, _pFS_API, &WebsSample_Application); // Initialize the context of the child task.
if (_ConnectCnt < MAX_CONNECTIONS) {
r = IP_WEBS_ProcessEx(&ChildContext, (void *)hSock, NULL);
} else {
r = IP_WEBS_ProcessLastEx(&ChildContext, (void *)hSock, NULL);
}
if (r != WEBS_CONNECTION_DETACHED) {
//
// Only close the socket if it is still in web server context and has
// not been detached to another handler like a WebSocket handler.
//
_closesocket(hSock);
}
OSSchedLock(&Os_Err);
_AddToConnectCnt(-1);
_aWebStacks[Index].InUse = 0;
OSTaskDel(0, &Os_Err);
OSSchedUnlock(&Os_Err);
}
/*********************************************************************
*
* _WebServerParentTask
*/
static void _WebServerParentTask(void) {
struct sockaddr_in InAddr;
OS_ERR Os_Err;
U32 Timeout;
U32 NumBytes;
long hSockListen;
long hSock;
int i;
int t;
int t0;
WEBS_BUFFER_SIZES BufferSizes;
Timeout = IDLE_TIMEOUT;
//
// Assign file system
//
_pFS_API = &IP_FS_ReadOnly; // To use a a real filesystem like emFile replace this line.
// _pFS_API = &IP_FS_emFile; // Use emFile
// IP_WEBS_AddUpload(); // Enable upload
//
// Configure buffer size.
//
IP_MEMSET(&BufferSizes, 0, sizeof(BufferSizes));
BufferSizes.NumBytesInBuf = WEBS_IN_BUFFER_SIZE;
BufferSizes.NumBytesOutBuf = IP_TCP_GetMTU(_IFaceId) - 72; // Use max. MTU configured for the last interface added minus worst case IPv4/TCP/VLAN headers.
// Calculation for the memory pool is done under assumption of the best case headers with - 40 bytes.
BufferSizes.NumBytesParaBuf = WEBS_PARA_BUFFER_SIZE;
BufferSizes.NumBytesFilenameBuf = WEBS_FILENAME_BUFFER_SIZE;
BufferSizes.MaxRootPathLen = WEBS_MAX_ROOT_PATH_LEN;
//
// Configure the size of the buffers used by the Webserver child tasks.
//
IP_WEBS_ConfigBufSizes(&BufferSizes);
//
// Check memory pool size.
//
NumBytes = IP_WEBS_CountRequiredMem(NULL); // Get NumBytes for internals of one child thread.
NumBytes = (NumBytes + 64) * MAX_CONNECTIONS; // Calc. the total amount for x connections (+ some bytes for managing a memory pool).
IP_Logf_Application("WEBS: Using a memory pool of %lu bytes for %lu connections.", sizeof(_aPool), MAX_CONNECTIONS);
if (NumBytes > sizeof(_aPool)) {
IP_Warnf_Application("WEBS: Memory pool should be at least %lu bytes.", NumBytes);
}
//
// Give the stack some more memory to enable the dynamical memory allocation for the Web server child tasks
//
IP_AddMemory(_aPool, sizeof(_aPool));
//
// Get a socket into listening state
//
hSockListen = socket(AF_INET, SOCK_STREAM, 0);
if (hSockListen == SOCKET_ERROR) {
while(1); // This should never happen!
}
IP_MEMSET(&InAddr, 0, sizeof(InAddr));
InAddr.sin_family = AF_INET;
InAddr.sin_port = htons(SERVER_PORT);
InAddr.sin_addr.s_addr = INADDR_ANY;
bind(hSockListen, (struct sockaddr *)&InAddr, sizeof(InAddr));
listen(hSockListen, BACK_LOG);
//
// Loop once per client and create a thread for the actual server
//
do {
Next:
//
// Wait for an incoming connection
//
hSock = 0;
if ((hSock = accept(hSockListen, NULL, NULL)) == SOCKET_ERROR) {
continue; // Error
}
//
// Create server thread to handle connection.
// If connection limit is reached, keep trying for some time before giving up and outputting an error message
//
t0 = IP_OS_GetTime32() + 1000;
do {
if (_ConnectCnt < MAX_CONNECTIONS) {
for (i = 0; i < MAX_CONNECTIONS; i++) {
//r = OS_IsTask(&_aWebTasks[i]);
if (_aWebStacks[i].InUse == 0) {
setsockopt(hSock, SOL_SOCKET, SO_RCVTIMEO, &Timeout, sizeof(Timeout)); // Set receive timeout for the client.
//
// Start the child task.
//
_aWebStacks[i].InUse = 1;
_aWebStacks[i].hSock = hSock;
OSTaskCreate(&_aWebTasks[i],
(CPU_CHAR *)"Webserver Child",
_WebServerChildTask,
(void *)i,
30,
&_aWebStacks[i].Stack[0],
10,
SEGGER_COUNTOF(_aWebStacks[i].Stack),
0, 0, NULL,
OS_OPT_TASK_STK_CHK | OS_OPT_TASK_STK_CLR,
&Os_Err);
_AddToConnectCnt(1);
goto Next;
}
}
}
//
// Check time out
//
t = IP_OS_GetTime32();
if ((t - t0) > 0) {
IP_WEBS_OnConnectionLimit(_Send, _Recv, (void*)hSock);
_closesocket(hSock);
break;
}
OSTimeDlyHMSM(0,0,0,10,OS_OPT_TIME_DLY,&Os_Err);
} while(1);
} while(1);
}
/*********************************************************************
*
* _OnRx
*
* Function description
* Discover client UDP callback. Called from stack
* whenever we get a discover request.
*
* Return value
* IP_RX_ERROR if packet is invalid for some reason
* IP_OK if packet is valid
*/
#if ETH_UDP_DISCOVER_PORT
static int _OnRx(IP_PACKET *pInPacket, void *pContext) {
char * pInData;
IP_PACKET * pOutPacket;
char * pOutData;
U32 TargetAddr;
U32 IPAddr;
unsigned IFaceId;
(void)pContext;
IFaceId = IP_UDP_GetIFIndex(pInPacket); // Find out the interface that the packet came in.
IPAddr = htonl(IP_GetIPAddr(IFaceId));
if (IPAddr == 0) {
goto Done;
}
pInData = (char*)IP_UDP_GetDataPtr(pInPacket);
if (memcmp(pInData, "Discover", 8)) {
goto Done;
}
//
// Alloc packet
//
pOutPacket = IP_UDP_AllocEx(IFaceId, PACKET_SIZE);
if (pOutPacket == NULL) {
goto Done;
}
//
// Fill packet with data
//
pOutData = (char*)IP_UDP_GetDataPtr(pOutPacket);
IP_UDP_GetSrcAddr(pInPacket, &TargetAddr, sizeof(TargetAddr)); // Send back Unicast
memset(pOutData, 0, PACKET_SIZE);
strcpy(pOutData + 0x00, "Found");
IPAddr = htonl(IP_GetIPAddr(IFaceId));
memcpy(pOutData + 0x20, (void*)&IPAddr, 4); // 0x20: IP address
IP_GetHWAddr(IFaceId, (U8*)pOutData + 0x30, 6); // 0x30: MAC address
//
// Send packet
//
IP_UDP_SendAndFree(IFaceId, TargetAddr, ETH_UDP_DISCOVER_PORT, ETH_UDP_DISCOVER_PORT, pOutPacket);
Done:
return IP_OK;
}
#endif
/*********************************************************************
*
* _IP_Task
*
* Function description
* Wrapper for IP_Task.
* Avoids using incompatible function types for OSTaskCreate().
*/
static void _IP_Task(void * p) {
IP_USE_PARA(p);
IP_Task();
}
/*********************************************************************
*
* _IP_RxTask
*
* Function description
* Wrapper for IP_RxTask.
* Avoids using incompatible function types for OSTaskCreate().
*/
#if USE_RX_TASK
static void _IP_RxTask(void * p) {
IP_USE_PARA(p);
IP_RxTask();
}
#endif
/*********************************************************************
*
* MainTask
*/
void MainTask(void) {
OS_ERR Os_Err;
IP_Init();
_IFaceId = IP_INFO_GetNumInterfaces() - 1; // Get the last registered interface ID as this is most likely the interface we want to use in this sample.
//
// Start the IP_Task.
//
OSTaskCreate(&_TCBIP,
(CPU_CHAR *)"IP_Task",
_IP_Task,
(void *)0,
20, // The lower the number, the higher the priority.
&_StackIP[0],
10,
SEGGER_COUNTOF(_StackIP),
0, 0, NULL,
OS_OPT_TASK_STK_CHK | OS_OPT_TASK_STK_CLR,
&Os_Err);
#if USE_RX_TASK
//
// Start the IP_RxTask, optional.
//
OSTaskCreate(&_TCBIPRx,
(CPU_CHAR *)"IP_RxTask",
_IP_RxTask,
(void *)0,
15,
&_StackIPRx[0],
10,
SEGGER_COUNTOF(_StackIPRx),
0, 0, NULL,
OS_OPT_TASK_STK_CHK | OS_OPT_TASK_STK_CLR,
&Os_Err);
#endif
IP_AddStateChangeHook(&_StateChangeHook, _OnStateChange); // Register hook to be notified on disconnects.
IP_Connect(_IFaceId); // Connect the interface if necessary.
//
// IPv4 address configured ?
//
while (IP_IFaceIsReadyEx(_IFaceId) == 0) {
BSP_ToggleLED(0);
OSTimeDlyHMSM(0,0,0,200,OS_OPT_TIME_DLY,&Os_Err);
}
BSP_ClrLED(0);
OSTaskChangePrio(NULL, 25, &Os_Err);
// OS_SetTaskName(OS_GetTaskID(), "IP_WebServer");
#if ETH_UDP_DISCOVER_PORT
//
// Open UDP port ETH_UDP_DISCOVER_PORT for emNet discover
//
IP_UDP_Open(0L /* any foreign host */, ETH_UDP_DISCOVER_PORT, ETH_UDP_DISCOVER_PORT, _OnRx, 0L);
#endif
IP_WEBS_X_SampleConfig(); // Load a web server sample config that might add other resources like REST.
_WebServerParentTask();
}
/*************************** End of file ****************************/
